Overview

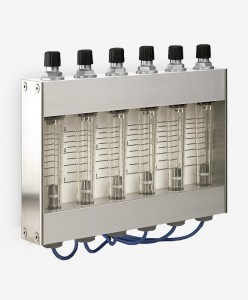

Variable area flow meter Model VExA is a sturdy industrial flow meter with heavy-duty impact resistant polymer flow tubes. It has flow adjustment valves on the outlet and a quick-change tube feature. It comes in a range of different options. It is a reliable instrument for measuring and monitoring lubrication oil flows.

Technical data

Number of flow tubes 1 – 7
Flow range, oil, 150 cSt Min. 0.02 – 0.35 l/min / Max. 1.5 – 10 l/min
Flow tube Grilamid (PA-12), *PES
End blocks Aluminium
*Alarm sensor ILK-M12-FR (10 – 55 VDC, 2-wire, NO/NC)
ILK-M12-N (Namur, DIN 19234)
*) Special construction on request
